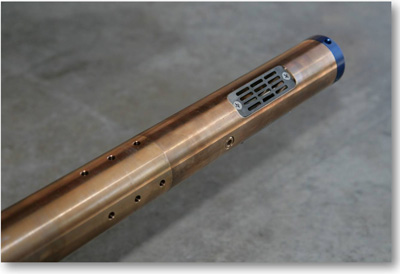

Retrievable MWD tools

Equipment

Brimnes Energy Inc. has modern, reliable positive pulse equipment that uses a bottom mounted pulser, which has a high tolerance to LCM due to the high seating force provided by its internal motor. The tool is retrievable and reseatable, and is compatible with a range of drill collar sizes, from 3 ½'' to 12''.

Some features are:

  • ± 0.1 ° Inclination
  • ± 0.5 ° Azimuth
  • ± 0.5 ° Toolface
  • 5.17 m to 7.72 m length, depending on configuration
  • Operating temperature to 150° C
  • Lithium battery life, 200 to 400 operating hours
  • Flow rate range, 0.4 to 4.5 cu m/min
